Polarimetry (at 4 wavelengths and over entire wavelength region 4600-7200A)
Constant and Linear Fits

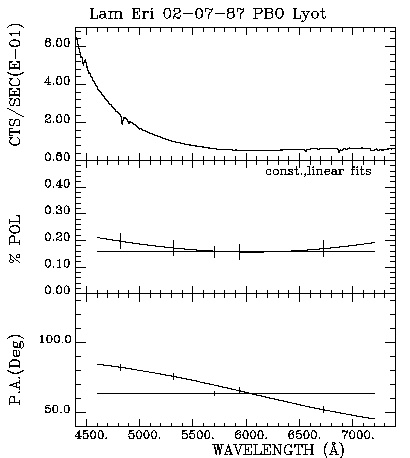

  Lam Eri 02-07-87 PBO Lyot

  Constant Fit:
  WAVEL.    %U    ERR-U    %Q     ERR-Q    %POL   ERRP      PA
  4817.    0.12    0.03   -0.10    0.05    0.16    0.04    63.9
  5320.    0.12    0.03   -0.10    0.05    0.16    0.04    63.9
  5941.    0.12    0.03   -0.10    0.05    0.16    0.04    63.9
  6725.    0.12    0.03   -0.10    0.05    0.16    0.04    63.9

  5701.    0.12    0.02   -0.10    0.02    0.16    0.02    63.9

  Linear Fit:
  WAVEL.    %U    ERR-U    %Q     ERR-Q    %POL   ERRP      PA
  4817.    0.05    0.03   -0.19    0.04    0.20    0.04    82.6
  5320.    0.08    0.03   -0.15    0.04    0.17    0.04    76.0
  5941.    0.12    0.03   -0.10    0.04    0.16    0.04    65.7
  6725.    0.16    0.03   -0.04    0.05    0.17    0.04    52.3

  5701.    0.10    0.02   -0.12    0.02    0.16    0.02    69.9

Counts/Sec vs Wavelength (Table)
