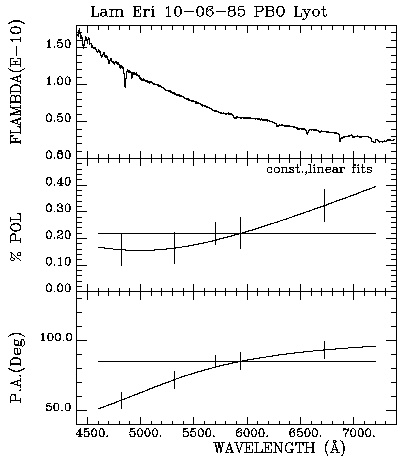

Polarimetry (at 4 wavelengths and over entire wavelength region 4600-7200A)
Constant and Linear Fits

  Lam Eri 10-07-85 PBO Lyot

  Constant Fit:
  WAVEL.    %U    ERR-U    %Q     ERR-Q    %POL   ERRP      PA
  4817.    0.04    0.06   -0.22    0.09    0.22    0.08    85.3
  5320.    0.04    0.06   -0.22    0.09    0.22    0.08    85.3
  5941.    0.04    0.06   -0.22    0.09    0.22    0.08    85.3
  6725.    0.04    0.06   -0.22    0.09    0.22    0.08    85.3

  5701.    0.04    0.03   -0.22    0.04    0.22    0.04    85.3

  Linear Fit:
  WAVEL.    %U    ERR-U    %Q     ERR-Q    %POL   ERRP      PA
  4817.    0.14    0.06   -0.07    0.09    0.16    0.08    57.5
  5320.    0.09    0.06   -0.13    0.09    0.16    0.08    72.3
  5941.    0.04    0.06   -0.22    0.08    0.22    0.08    85.4
  6725.   -0.04    0.06   -0.32    0.09    0.32    0.08    93.5

  5701.    0.06    0.03   -0.18    0.04    0.19    0.04    81.2

Flux (erg/cm**2/sec/A) vs Wavelength (Table)
